Film Blowing Machine Maintenance: 4 Checks That Save You Downtime

I've been servicing film blowing machines since 1996. One pattern never changes: the machines that last 15 years aren't always the most expensive ones. They're the ones where the operator actually reads the maintenance manual.

Here's what we tell every customer after installation. Do these four checks, and you'll avoid 80% of the emergency calls we get.

1. Clean the screw and barrel every month

Melted plastic residue builds up. It doesn't just reduce output — it creates black spots in your film that your customer will reject. We see this constantly on machines running recycled material. Once a month, pull the screw, scrape off the carbon buildup, and check for scoring on the barrel wall. If you see deep scratches, call us. Don't wait for it to get worse.

(Related: Common Film Blowing Machine Problems: 5 Issues I've Fixed in 30 Years)

2. Check the die head gap weekly

Uneven film thickness is almost always a die gap problem. Not the extruder, not the material — the die. A gap of 0.8 mm on one side and 1.2 mm on the other will give you wrinkles, weak spots, and customer complaints. Use a feeler gauge. Takes 10 minutes. Saves you a full day of bad rolls.

3. Calibrate your temperature controllers quarterly

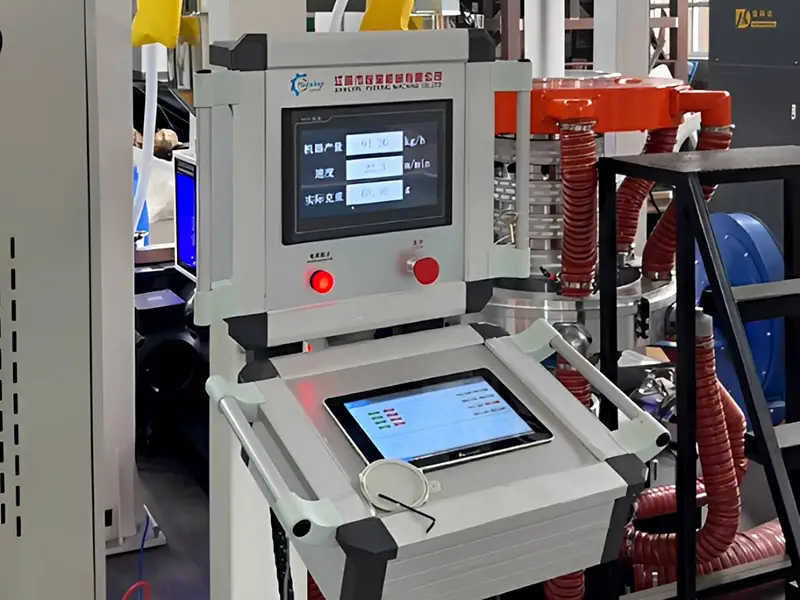

Temperature drift is invisible until it's catastrophic. A zone running 10°C hotter than displayed will degrade your resin and drop your output without warning. We send technicians with calibrated thermocouples to customer factories every quarter. If you're too far from us, buy a handheld infrared thermometer and cross-check your controller readings monthly. When they diverge by more than 5°C, replace the thermocouple. It's a $15 part that prevents a $2,000 screw rebuild.

(Related: 5 Features of High-Output Thin Film Blowing Machines)

4. Check gearbox oil level every two weeks

This is the one everyone forgets. The main extruder gearbox runs hot. Low oil means bearing wear, vibration, and eventually — catastrophic failure. We've replaced gearboxes that could have lasted another decade if someone had just checked the sight glass. Two minutes. Every two weeks. That's it.

How long should a film blowing machine last?

With proper maintenance, 15 to 20 years is normal. Without it, 5 to 7 years is generous. The machine doesn't care how much you paid for it. It cares whether you changed the oil.

(Related: How to Choose a Film Blowing Machine: 5 Questions We Ask Every Buyer)
